Description

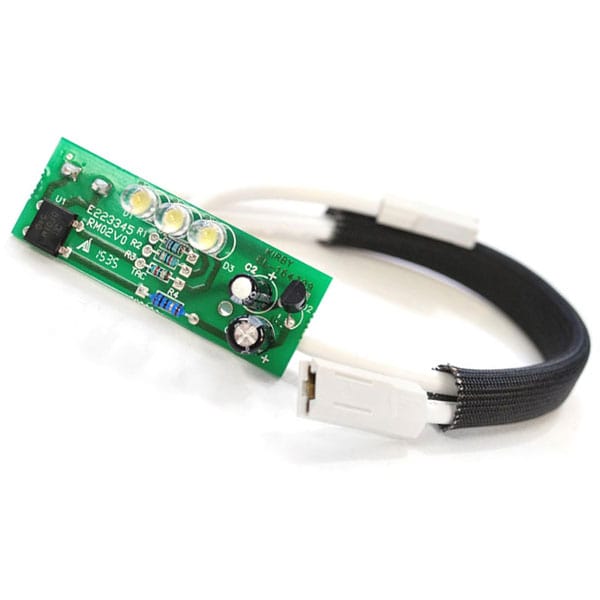

Kirby Sentria-Avalir LED Circuit Board

The Kirby Sentria-Avalir LED Circuit Board is an essential electronic component that ensures the correct operation of the LED indicators in your Kirby vacuum cleaner. Thanks to this circuit board, you receive clear visual signals about the status and performance of your machine, allowing you to respond more quickly to any malfunctions.

What is the Kirby LED Circuit Board?

The Kirby LED Circuit Board is an advanced printed circuit board (PCB) with integrated connections and LED lighting. This component processes signals from the vacuum cleaner and converts them into clear light indications.

In addition, this circuit board plays a crucial role in modern Kirby models such as the Avalir and Sentria series. While older systems were mainly mechanical, these electronic components offer extra control and ease of use.

Function of the LED Circuit Board

Kirby LED Circuit Board for control and signaling

The Kirby Sentria-Avalir LED Circuit Board ensures that all LED lights function correctly. As a result, you receive immediate feedback about the status of your vacuum cleaner.

This includes:

• On/off indication
• Warning signals for blockages or malfunctions
• Status display of components such as the brush and drive system
• Additionally, the circuit board translates internal signals into visual notifications, making problems visible more quickly.

Location of the Kirby Sentria-Avalir LED Circuit Board

Kirby LED Circuit Board in the headlight unit

The Kirby LED Circuit Board is located in or directly behind the headlight unit at the front of the machine. This ensures that the LED indicators are clearly visible during use.

This circuit board only fits the updated version of the headlight brackets. Therefore, pay close attention to compatibility, as this component is not suitable for older SE and SEII models.

Compatibility of the Kirby Sentria-Avalir LED Circuit Board

The LED Circuit Board is suitable for the following models:

• Kirby Avalir Platinum
• Kirby Avalir 2
• Kirby Avalir
• Kirby Sentria II
• Kirby Sentria I

Since the older version of this circuit board is no longer available, this model serves as the correct replacement option for modern Kirby systems.

Why the LED Circuit Board is important

Kirby LED Circuit Board for diagnostics and safety

The LED Circuit Board significantly contributes to both safety and ease of use. Thanks to clear signaling, you can detect malfunctions at an early stage.

This allows you to benefit from:

• Faster diagnostics when problems occur
• Prevention of more serious damage
• Better control over the operation of your Kirby

Although Kirby vacuum cleaners are known for their durability, electronic components like this circuit board provide additional protection.

Common problems with the Kirby Sentria-Avalir LED Circuit Board

Recognizing a defective LED Circuit Board

A defective LED Circuit Board is usually identified by abnormal behavior of the LED indicators.

Common symptoms include:

• Flickering or non-functioning lights
• No startup despite power being present
• Incorrect or random error signals

In such cases, the vacuum cleaner may appear defective, while often only the circuit board needs to be replaced.

When should you replace the Kirby LED Circuit Board?

Kirby LED Circuit Board replacement or repair

Replacement of the LED Circuit Board is necessary when the LEDs no longer respond or when visible damage is present.

Replacement is also recommended in cases of:

• Electrical malfunctions
• Damaged connections
• Unreliable signaling

Because this is an electronic component, professional installation is recommended. Also view our internal page about Kirby parts for additional components.

Additional information and related parts

For a fully functioning headlight unit, you can also look at matching components such as Kirby headlight brackets and Kirby bulbs and covers.

Summary Kirby Sentria-Avalir LED Circuit Board

The LED Circuit Board is a small but essential component that ensures correct LED indication and reliable diagnostics. Thanks to this component, your Kirby operates optimally and you can detect malfunctions more quickly.

In short, without this circuit board, the indicator lights will not function properly, making maintenance and use of your vacuum cleaner significantly more difficult.
